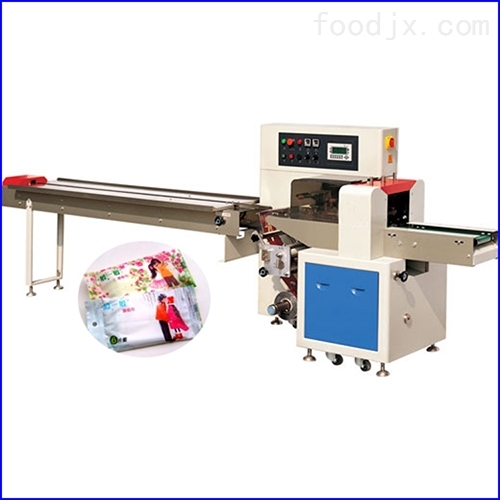

ysd-z250x下走膜枕式包装机


ysd-z250x下走膜枕式包装机


ysd-z250x枕式包装机主要特点:

1.plc控制性能稳定,袋长即设即切,一步到位,省时省膜。

2.触摸屏操作界面,简单易懂,操作更为直观。

3.故障自诊断功能,故障显示一目了然。

4.高灵敏度光电跟踪,数字化输入封切位置,使封切位置更加准确。

5.温度独立控制,更好适合各种包装材质。

6.传动系统简洁,工作可靠,维护保养方便。

7.可配置各种附加装置,如:打码机、充氮机、喷酒精机构、插角机构、自动落料机构等。


适用范围:

下走膜枕式包装机适合于饼干、雪糕、米通、雪饼、蛋黄派、巧克力、面包、方便面、月饼、日用品、工业零件、纸盒或托盘等各类有规则物体的包装。

main function and characteristic:

1.performs steadily with plc controls. flexible bag length cutting, and saving time and film.

2.human-machine touch screen operation, convenient and quick parameter setting.

3.self diagnosis malfunctions, clear failure display.

4.high sensitivity photoelectric eye tracking and digital input of cut position make the sealing and cutting more accurate.

5.separate pid control temperature, and is suitable for various packing materials.

6,simple driving system, reliable working and convenient maintenance.

7,additional apparatus can be mounted like coding machine, nitrogen filling machine, alcohol spraying structure, gusset inserting structure, and automatic dropping materials structure.

application scope:

suitable for packing soft, strip and unorganized objects like towels, tissues, noodles, egg rolls, sausages, sleeve-fish, popsicle, soft candies, biscuits, fresh fruits etc.

性能参数performance parameter:

机型model

ysd-z250x

薄膜宽度film width

max.250mm

制袋长度bag length

65~190mm or 120250mm

制袋宽度bag width

30~110mm

产品高度product height

max. 40mm

膜卷直径film roll diameter

max.320mm

包装速度packing speed

40~230 bag/min

电源规格power spec

220v,50/60hz,2.4kva

机器尺寸machine size

(l)3770x(w)670x(h)1450

机器质量machine weight

500kg
